Positioners
6 items
ASD Fail Safe Digital Smart Valve Positioners
ASD5000
Digital smart positioner with HART protocol (Ver.7) Easy and quick auto-calibration Detects reverse acting (RA) or direct acting (DA) automatically Non-contact magnetic position sensor Alarm codes according to NE 107 Standard NAMUR mounting bracket (VDI/VDE 3845, IEC 60534-6-2) with adjustable height Usable with single or double acting actuators Auto/Manual bypass Programmable characteristic curve with 17 points Includes logic to eliminate overshooting and hunting, improving control Low air consumption (0.1 SCFM) High flow pilot valve (10.5 SCFM) Direct to atmosphere exhaust improves reliability. Wide operating temperature range (-22°F to 176°F ) IP66 enclosure and standard model with Intrinsically safe ratings (IECEx/ATEX Ex ia IIC T6/T5 Gb, Ex ia IIIC T85°C/T100°C Db) Options Low Temperature (-40°F to 176°F) Linkage-less actuator connection 316 Stainless Steel body Advanced diagnostics
- USD
EPR-1000 Electro-Pneumatic Positioner
EPR-1000EPP
TRIAC® EPR 1000 pneumatic positioners (4-20mA, linear pneumatic positioner, and rotary type pneumatic positioner) are advanced control devices which provide unparalleled stability in difficult environments. They are made with a vibration-resistant design and a corrosion-resistant aluminum diecast body. A solid workhorse you can depend on for consistent, reliable control. Easy maintenance Sensitive response for high performance Simple structure for feedback connection Precise calibration with simple SPAN and ZERO adjustments Simple conversion to Direct Acting or Reverse Acting Split range control available by simple adjustments without changing parts Stainless steel gauges standard A restricted pilot valve orifice kit for small actuators included Optional built-in limit switches or 4-20 mA position transmitter for feedback Optional directly-mountable positioner
- USD

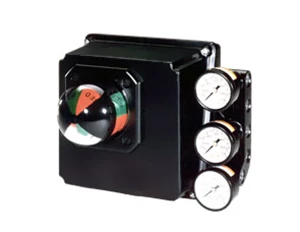

Other Positioners - Series 760
760OP
A cost effective, universal approach to your valve control. The modular concept (Model 760P) allows all models to be built on the base pneumatic unit. The electro-pneumatic model (Model 760E) is created by adapting an I/P Transducer to the base pneumatic unit, and a wide range of accessories easily installs inside the unit. Universal design and choice of interchangeable NAMUR IEC 534-6 rectilinear or VDI/VDE 3845 rotary mountings provide wide application flexibility Double-acting or single-acting service and split ranging afford application versatility in a single unit NACE MR-01-75-compliant material ensures operation in harsh industrial environments Non-interaction of the zero and span adjustments and positive cam locking mechanism significantly reduce the calibration and setup Modular design reduces inventory because it allows interchangeable spare parts Comes standard with 3 cams, linear, quick opening and equal % for application versatility The 760 base pneumatic unit provides cam characterization, split ranging, direct or reverse action, and single or double acting without requiring additional parts. Key design features include non-interaction of the zero and span adjustments. Series 760 valve positioners include provisions for internal limit switch mounting and position feedback devices without requiring additional housings. Thus, the need to stack housings that impede access to the main enclosure are eliminated. A spool valve is used to load the actuator for positioning in response to an input signal. A characterized cam provides mechanical feedback. There are linear, equal percentage and quick opening operation cam profiles, and a blank profile cam is available for custom applications. Rectilinear action length can range from 1/2 to 6. The feedback shaft and characterized cam can be replaced in the field to configure the positioner for use with either a rectilinear or rotary actuator. No additional parts are necessary to change between single or double acting actuators or direct or reverse action.
- USD

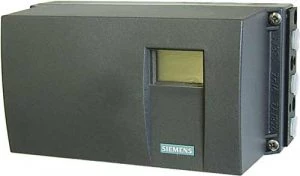

Other Positioners - Series PS2
PS2OP
The PS2 Series digital electro-pneumatic positioner with Hart protocol is used to control the final control element of pneumatic linear or part-turn actuators. The electro pneumatic positioner moves the actuator to a valve position corresponding to the setpoint. Additional function inputs can be used to block the valve or to set a safety position. A binary input is present as standard in the basic device for this purpose. Only one device version for linear and part-turn actuators Simple operation and programming using three keys and a two-line LCD Automatic startup function with self-adjustment of zero and span Manual operation without additional equipment Selectable or freely-programmable characteristics Minimum air consumption Selectable setpoint and manipulated variable limiting Programmable tight shut-off function” Available for non-hazardous or hazardous applications as intrinsically-safe device (EEx ia/ib) or in flameproof casing (EEx d) Options: With 0/4 to 20 mA communication using HART signals (option) With PROFIBUS-PA communications interface (EEx ia)
- USD

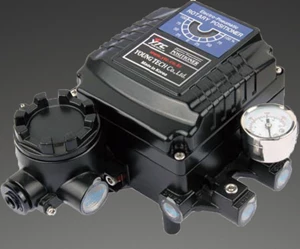

Other Positioners - YT Series
YTOP
YT-1200 - Pneumatic Positioner YT-1000R-FM - FM Class I, Div 1 Grps C and D (20°C to 60°C) YT-3400 FM Approved Explosion Proof Electro-Pneumatic - FM Class I, Div 1 Grps A, B, C, and D T5/T6 (-40°C to 80°C)
- USD

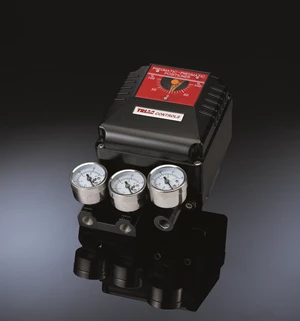

PPR-1200 Pneumatic Positioner
PPR-1200PP
TRIAC® PPR 1200 pneumatic positioners (3-15PSI, linear pneumatic positioner, and rotary type pneumatic positioner) are advanced control devices which provide unparalleled stability in difficult environments. They are made with a vibration-resistant design and a corrosion-resistant aluminum diecast body. A solid workhorse you can depend on for consistent, reliable control. Easy maintenance Sensitive response for high performance Simple structure for feedback connection Precise calibration with simple SPAN and ZERO adjustments Simple conversion to Direct Acting or Reverse Acting Split range control available by simple adjustments without changing parts NAMUR mounting dimensions Stainless steel gauges standard A restricted pilot valve orifice kit for small actuators included
- USD
1 - 6 of 6
