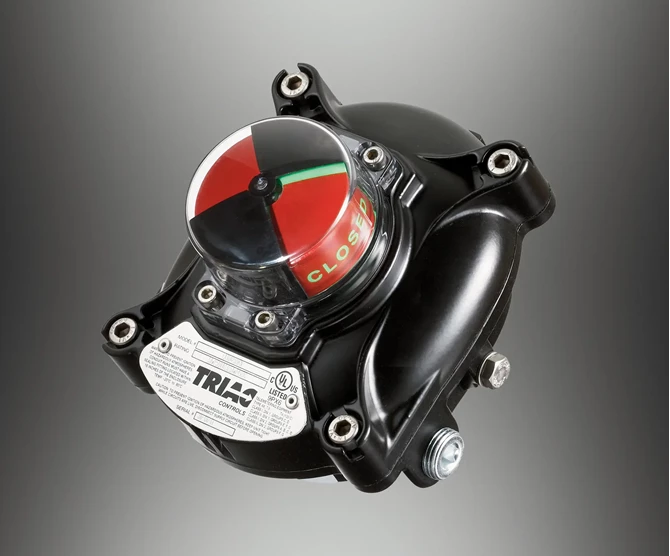

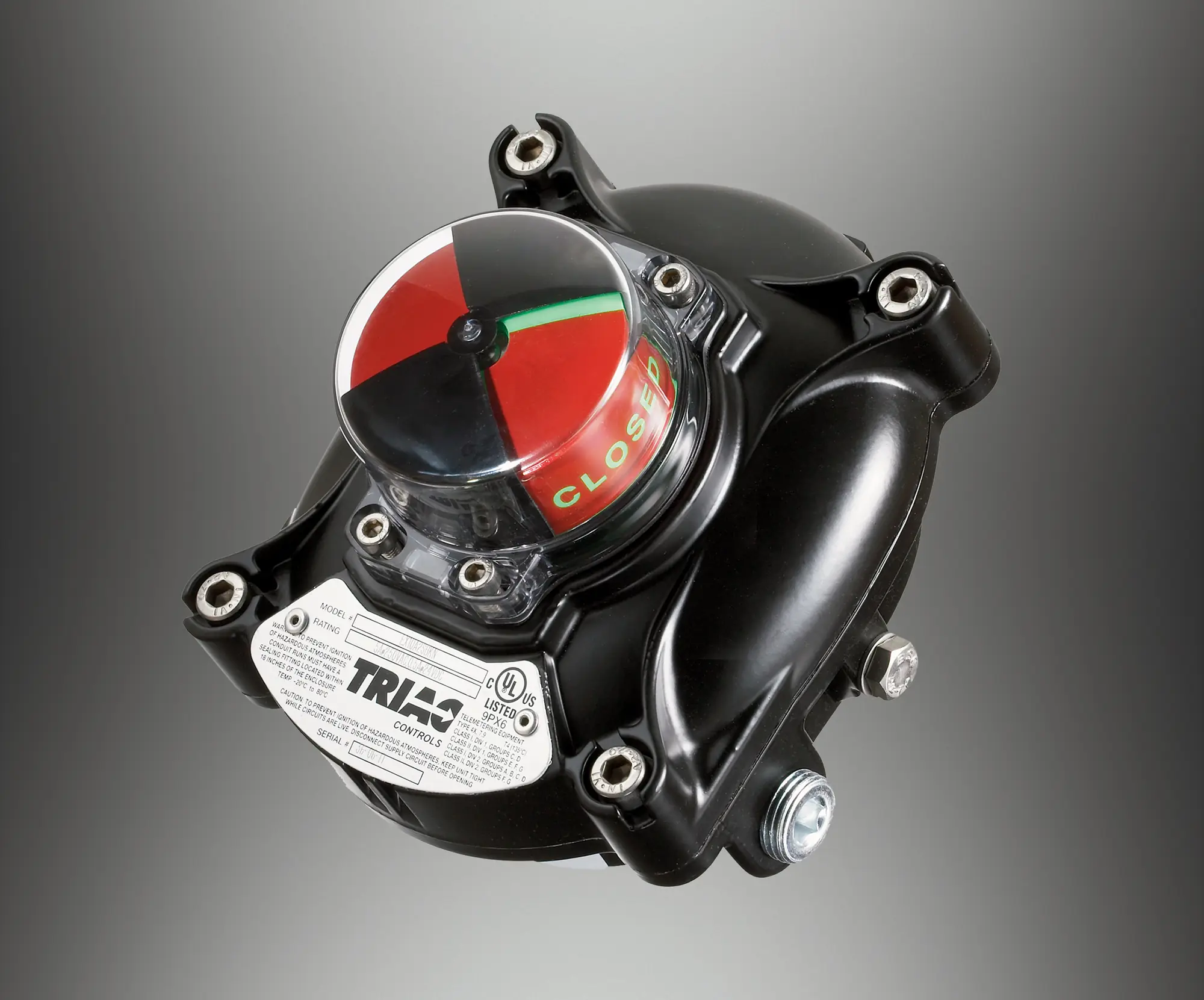

EX, EC, ES, EY, EW Series: UL Listed Limit Switches

Product Description

The TRIAC® EX, EC/ES, EY, and EW Series hazardous location Limit Switches provide compact design and low cost for both visual and remote electrical indication of rotary valve/actuator position. Their heavy duty design and wide variety of options make them ideal for multi-purpose limit switch applications.

Features: twin shaft body design | easy-set cams | multiple switch options | valve position indicator | 1/2 or 3/4 NPT conduit entries | standard NAMUR mounting brackets | various models and options

EX Series:

Aluminum Housing

NEMA 4, 4X, 7 and 9 applications

Up to three conduit entries

EC/ES Series

Available in Aluminum (EC) or 316SST (ES) Housing

UL Listed type 4, 4X, Weather-Proof

Dual threaded conduit entries with extra terminals

EY Series

Low Copper Aluminum Housing

UL Listed type 4, 4X, 7 & 9, Explosion-Proof & Weather-Proof

Up to four conduit entries with extra terminal options

EW Series

L316 Stainless Steel Housing

UL Listed type 4, 4X, 7 & 9, Explosion-Proof & Weather-Proof

Up to four conduit entries with extra terminal options
