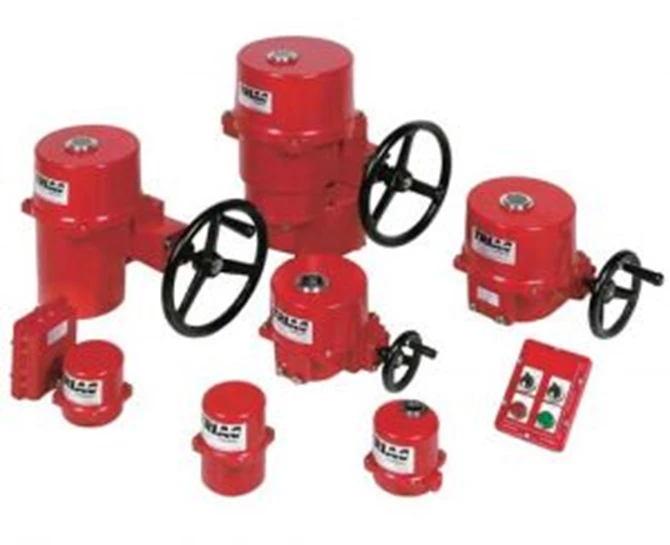

E-Series (Original Style) Triac® Electric Actuator

Product Description

The original product line of TRIAC electric actuators, E Series electric actuators offer torques from 300 to 30,000 in. lbs. and numerous features including manual overrides, auxiliary switches, 4-20mA modulating control, several voltage options including 1-phase 24/120V/220V - 12 and 24VDC, 3-phase 220v, 380v, and 440v (view voltage chart). The units feature EP-CYCLICAL gear trains and a unique manual override with handwheel. All actuators are Type 4x and are designed for maximum cycle life due to our rugged motors and gear trains. As with all TRIAC actuators, our E Series electrics are available with mounting kits on most ball, butterfly and plug valves. The actuators are ideal for use on butterfly and louver dampers with the increased benefit of self-locking EP-CYCLICAL gears, eliminating the need for unreliable solenoid brakes.

E Series Electric Valve Actuators Feature

CSA and CE Approved

Corrosion resistant Type 4, 4x construction

Self-locking EPI-CYCLICAL gear train

Standard manual override with handwheel

Visual position indicator

Standard two auxiliary limit switches (10amp at 120VAC)

Torque swtiches (2) standard on models ETI-8600 and larger

Optional servo card for modulating service

ISO5211 mounting patterns

14º-160ºF working temperature

E Series Electric Valve Actuator Options

Potentiometer

A optional potentiometer can provide a resistance (0-135ohm, 0-1Kohm, 0-5kohm, 0-10kohm) signal proportional to the actuators position. The potentiometer can give continuous feedback to control panels and other closed loop devices.

Three Position Control

The E-Series actuator can be configured to have three distinct positions. The three position controls is useful in filling applications and multiported valves.

Two Wire Control

When using the optional two wire control, the E-series (2) position electric actuator can be controlled with a low voltage signal. When the voltage is present the spring loaded relay will trip energizing the actuator to rotate clockwise or counter-clockwise. When the voltage is removed the spring will untrip the relay, energizing the actuator to rotate in the opposite direction.

DC Modulating Card

The Triac DC modulating card (4-20mA input) can be used with the Triac E-Series DC powered actuators. Dynamic braking reduces motor coasting and provides improved control. Low standby current (22mA typical) when the actuator is not in operation.

Speed Control

The Triac Speed Control is a compact module that extends the operating time of the E-Series AC powered actuator by pulsing the motor on and off. Extending the cycle time of an actuator can avoid problems associated with water hammer and control system instabilities.

Control Boxes

Control boxes are available for a variety of local control options, such as local/remote open-off-close and jogging control. NEMA 4 housings are used as standard, but other housings are available upon request.

E Series Modulating Control Features

10 bit Microprocessor Controller for precise positioning - eliminates the need for an external deadband control.

Programming of the controller is accomplished by a combination of push buttons and seven position DIP switch without the need for a command signal.

Input signals can be 4-20mA, 0-10VDC, 1-5VDC, Command signal potentiometer.

The TMC2 can be programmed to fail in place, fail clockwise or fail counter clockwise on loss of command signal.

Characterize control - Linear, Quick opening (square root) or equal percentage (square) relationship between the actuator position and the command signal.

On Board - 4-20mA Transmitter (Optional).
