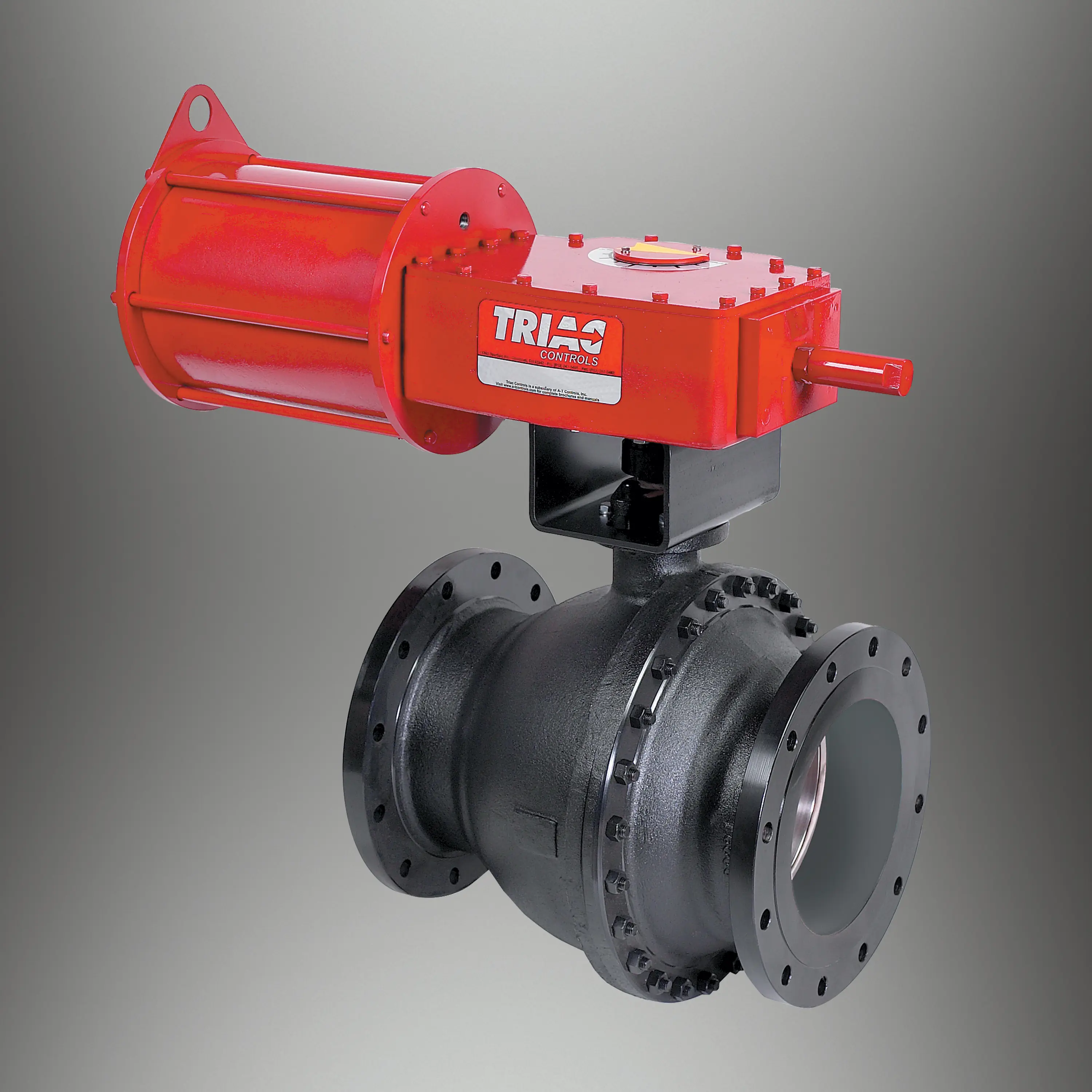

THD Series: Heavy Duty Scotch Yoke Actuator

Product Description

Heavy Duty Pneumatic Actuators for Quarter-Turn Valves and Dampers

Torques to 1,600,000 in. lbs.

Available in Double Acting and Spring Return

Travel adjustments ±8º for clockwise and counter-clockwise strokes

Nitrile rubber piston O-rings offer excellent sealing and wear. Optional low and high temperature seals and lube are available

RTFE Guide Band supports piston while providing smooth operation and extended life

Extra-large, strong piston rod for long life and torque transmission

NAMUR accessory mounting pads for standardized mounting of limit switches, positioners, etc.

Ductile iron center body

Modular design allows for installing power groups and spring cartridges so that actuators may be set up for different air pressures and for Fail Clockwise and

Fail Counter-clockwise

Rugged heavy-duty steel pressure cylinders chrome plated for long wear and corrosion resistance

Safe, welded spring cartridges with numerous options for a broad range of air pressure conditions

Alloy steel, corrosion resistant and heat-treated springs designed and manufactured for long high cycle life

Steel slide block, bronze slide bearings to minimize friction and provide long cycle life (Not available on the S09 pressure group)

Visual position indicator

The TRIAC® heavy duty scotch yoke actuator product line offers a broad range of torques to 1,600,000 in-lbs. The THD series is designed to operate ball, butterfly, plug valves, dampers or any device that requires a quarter-turn movement for on-off or throttling service. Our standard offering is the symmetrical design yoke that delivers maximum torque at both ends of the 90º cycle. The square slide bearing with guide bar provides high cycle life and smooth stroke while minimizing wear points. Also available is a canted yoke design, which is ideal for butterfly valves in sizes C11 and larger.

As with all TRIAC® actuators, our THD series is accompanied by a complete line of accessories, including jackscrew & hydraulic overrides, limit switches, solenoids and positioners. A-T Controls also offers complete mounting hardware to integrate our actuators with any quarter-turn valve, damper or louver.
