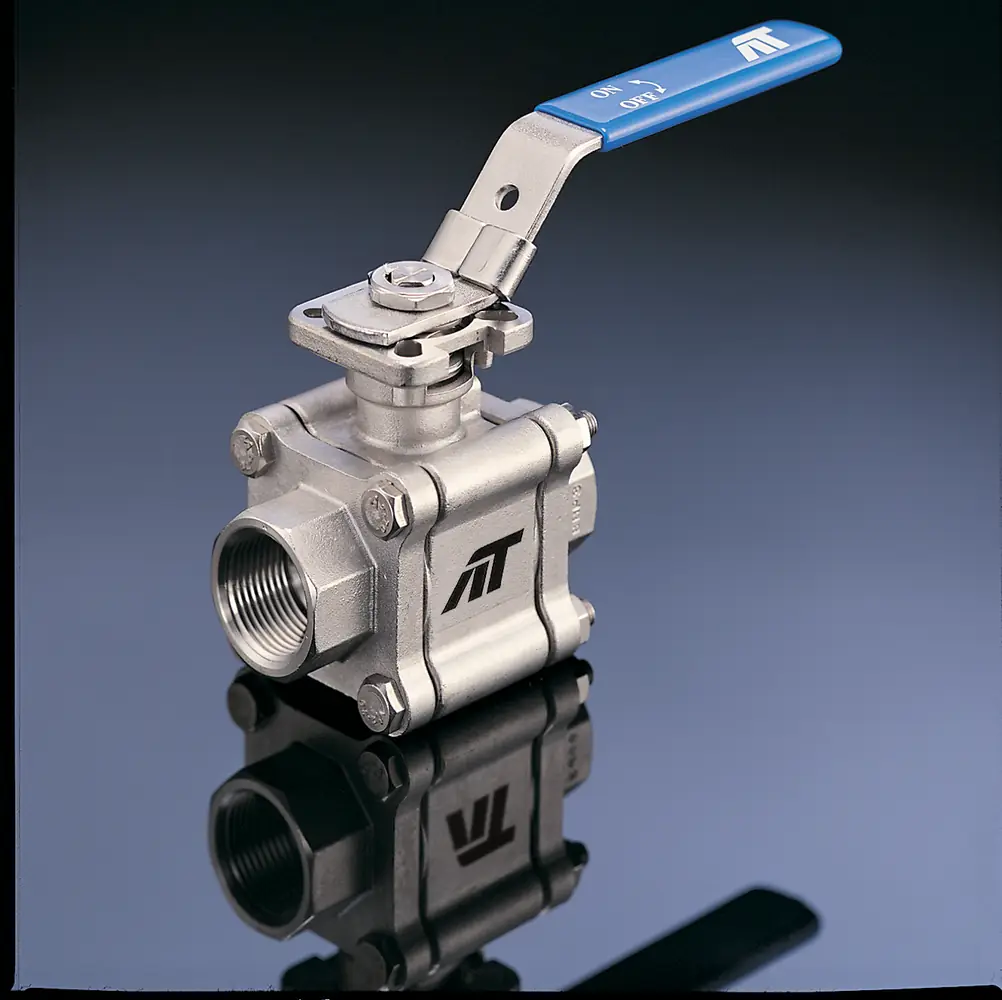

88 Series High Performance 3-Piece Ball Valve

Product Description

The Triac® 88 Series 3-Piece Ball Valves feature a direct mount automation pad. The high-quality investment castings feature a fully machined bore. The superior live-loaded packing system is accomplished with Belleville washers, “V” ring packing and a unique pyramidal stem seal. This advanced sealing system provides protection against stem leaks experienced by ordinary ball valves.

Sizes ¼” – 4”

Full Port

Conforms to ASME B16.34 (2020)

Class up to 600, 1000 to 2000 psi (BPVC) by size

CF8M, WCB, Alloy 20, or Hastelloy C-276

Direct Mounting Pad

Threaded, Socket Weld or Butt Weld Ends

TA-Luft Certified for Low Emissions

RTFE seats are Standard, 50/50 Seats are Available for High Temperature and Difficult Applications

Also available with a Pneumatic Spring Return Actuator, Double Acting Actuator or Electric Actuator.

View this package in 2D or 3D on our Automated Drawing System.
