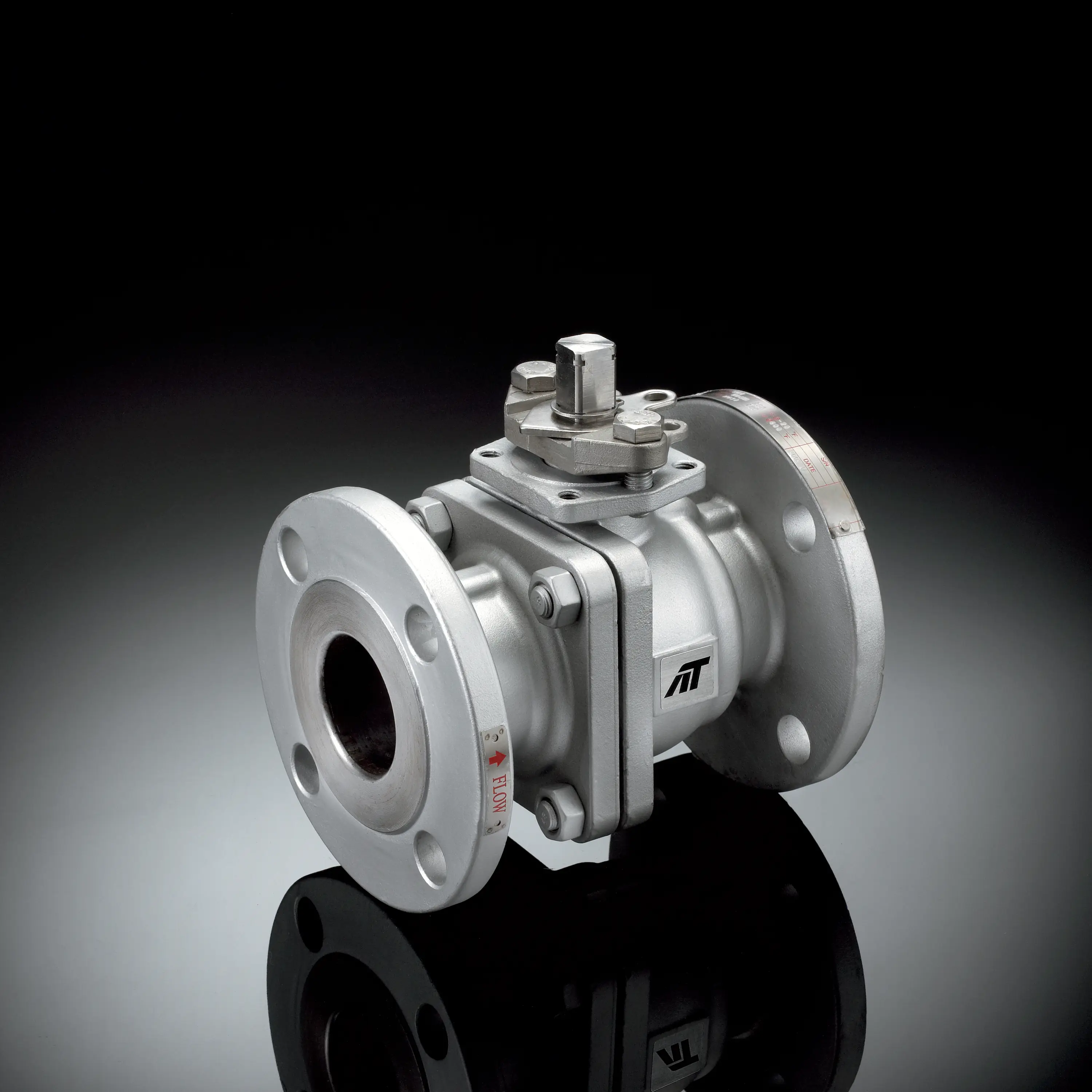

FMU / FMB / FMS Series (Flanged Split Body)

Product Description

The A-T Controls M Series metal seat ball valve is designed for use in severe services such as high temperature, high pressure, and abrasive fluids found in Oil & Gas, Petroleum, Petrochemical, Chemical, Power Generation, Pulp & Paper, and Mining industries.

FMU / FMB / FMS Series: Full Bore Two-piece Flanged Ends ANSI Class 150/300/600

Unidirectional (FMU) or bidirectional (FMB) shutoff options available.

Scraper Seat Design (FMS) for heavy slurry suck as in the pulp & paper industry.

ANSI Class 600 wall thickness design

Precise CNC machining enables the ball and seats to seal tightly, offering superior shutoff. (Standard Class V, Class VI is optional).

Blowout proof stem

ISO 5211 mounting pad

Fire safe certified to ISO 10497 3rd Edition

Optional Tungsten Carbide (TC) coating for heavy slurry & high temperatures

Spring live-loaded seats ensure tight seal, even at low temperature and pressure

Select material for different service applications

Black Liquor Service

Hard face treatment on ball and seats for longer life cycle in severe environments

Applications:

Abrasive Fluids | High Temperature Process | Steam | Gas | Liquid

These valves hold CRNs (Canadian Registration Numbers). Use the search bar on our site to access the CRN certificates; search CRN.
