LB Series: PFA Lined Ball Valves

LB Series: PFA Lined Ball Valves

  • Item #: LBPFALBV

View Resources

Product Description

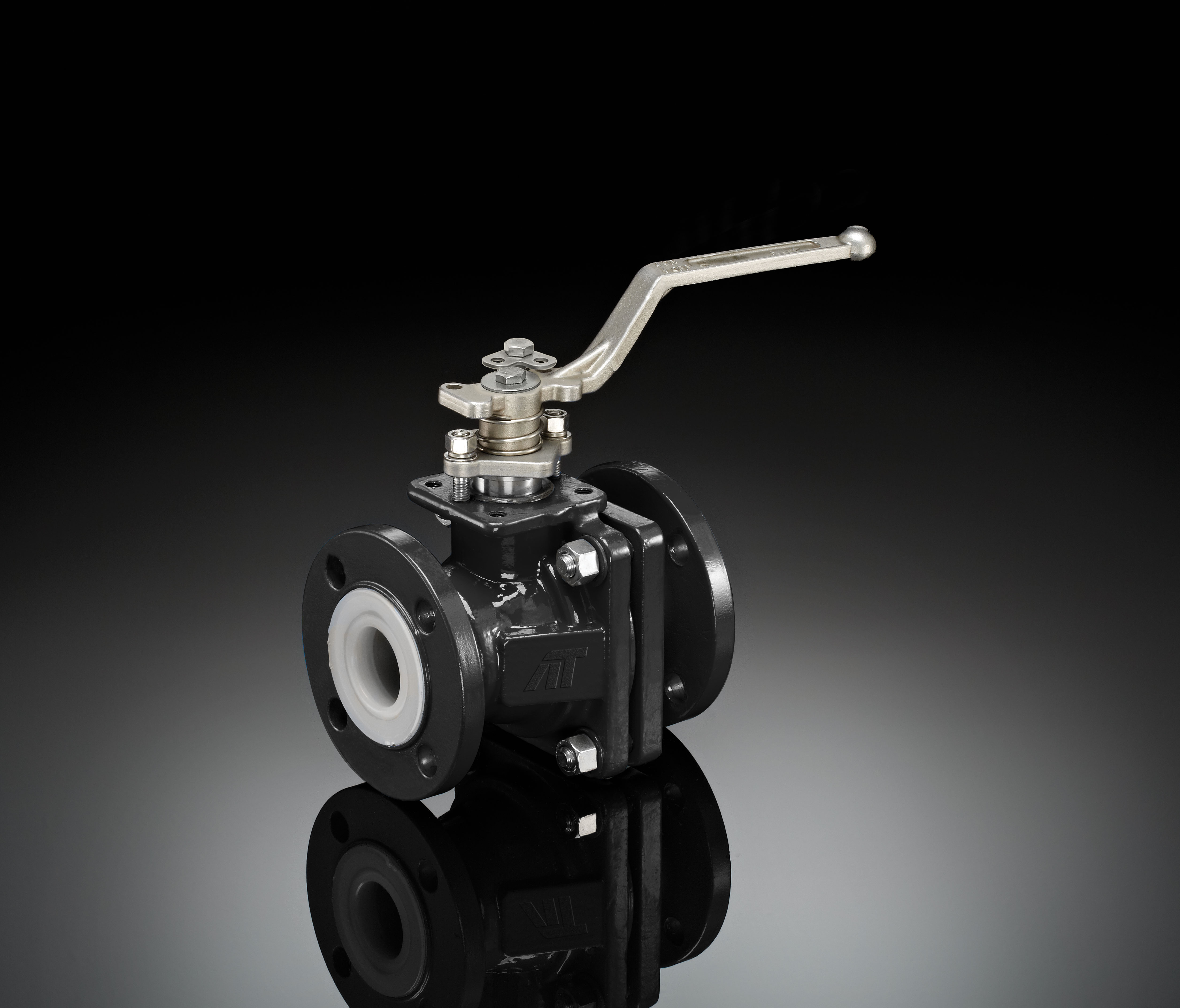

A-T Controls’ Series LB ball valves feature the latest technology in PFA. These fully lined ball valves are available with stainless steel or epoxy coated carbon steel body. The superior PFA lining is able to withstand temperatures up to 400ºF and demonstrates greater durability than PTFE. This high purity PFA has extremely low gas permeability and outperforms other materials in critical services.

These split body valves feature adjustable packing. The lining thickness is at least 3mm. throughout the body and ball. One-piece ball and stem design reduces side loading and extends stem and packing life.

Sizes 1/2”-8”

Flanged Ends | ANSI Class 150

Full Port Design

Superior Packing System

PTFE Seats Standard

Lockable Manual Handle

Spark Test Standard (20 kV)

The A-T valves in this series hold CRNs (Canadian Registration Numbers). Use the search bar on our site to access the CRN certificates; search CRN.

Catalogs & Manuals

Certifications
