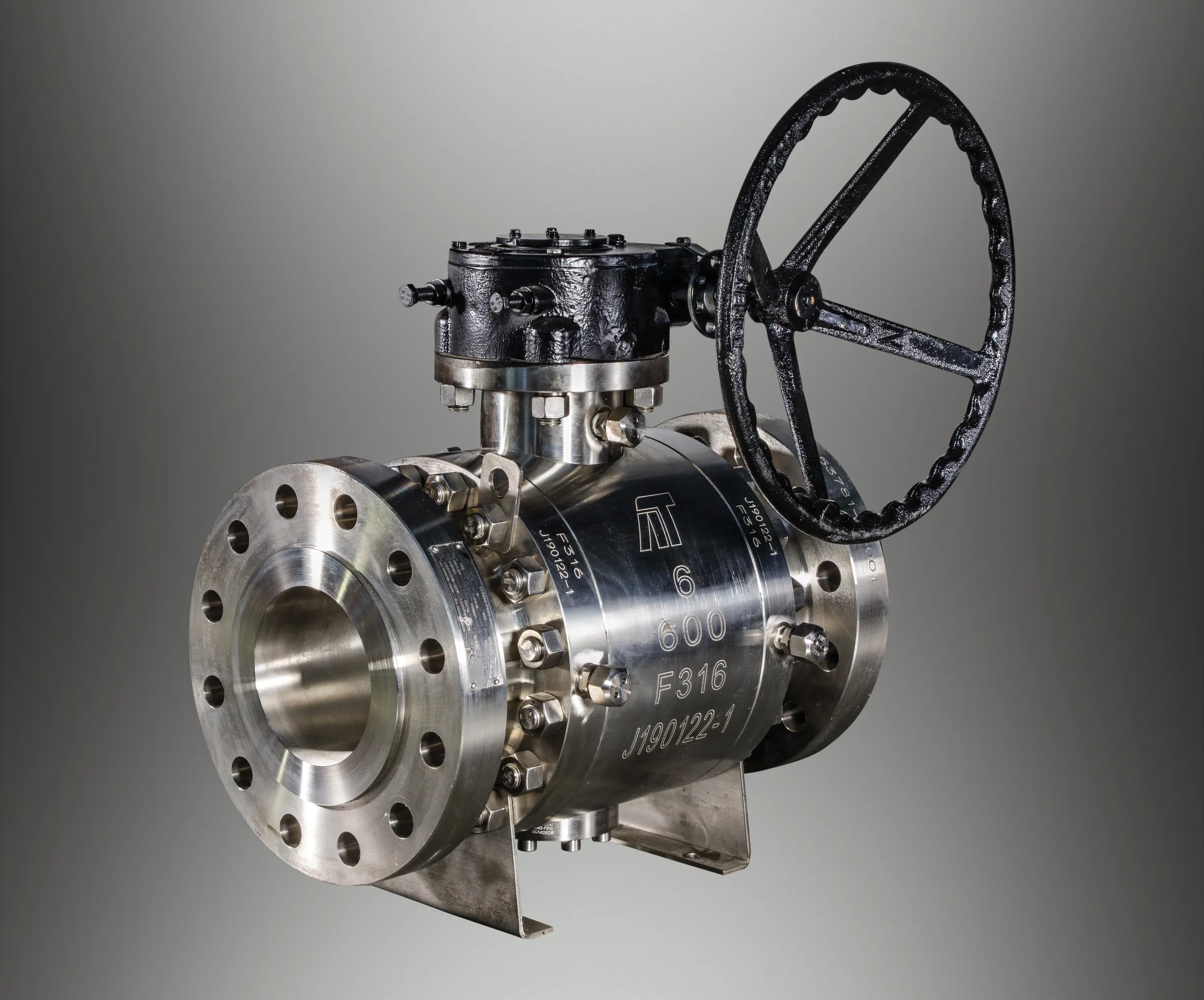

TM Series - TRUNNION Mounted Metal Seat Ball Valves

Product Description

TM3 – 3pc. Cast, available from 2”-24”, ANSI Class 150/300/600

Bi-directional metal seat design

Metal seat hard face coatings available in Stellite®, Tungsten Carbide or Chrome Carbide

Standard metal seat leakage rating is in compliance with ANSI/FCI-70-2 Class V for Stellite® seats. Class VI is standard for Tungsten Carbide and Chrome Carbide coated seats.

Standard splined stem connection (6 and larger)

Standard graphite stem packing design

Anti-static design

Fire-safe design in accordance with API 6FA

Optional drain plug and body purge device available

These valves hold CRNs (Canadian Registration Numbers). Use the search bar on our site to access the CRN certificates; search CRN.
