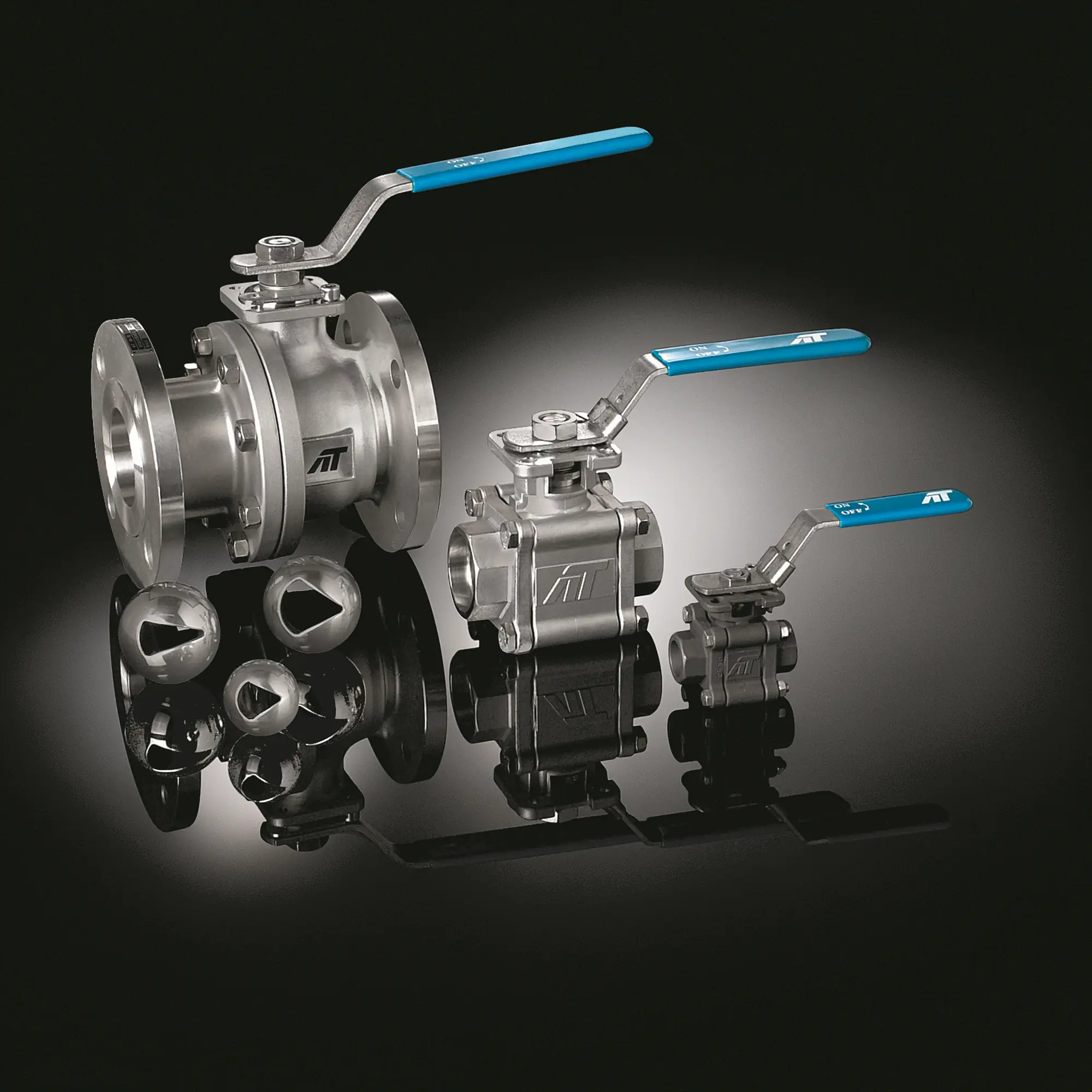

V Series: Full V-Port Control Valves

Product Description

Triac® V-Port Control Valves are ideal for achieving more precise control with the simplicity and sealing features of a ball valve. The V-port valves are available with 15°, 30°, 60°, & 90° V-notch options (custom cut also available). V-port valves offer better and more consistent control than traditional round ported ball valves. We offer this valve with the control port cast and machined into the ball, not in the seat, which allows for much better flow characteristics and eliminates the need to replace seats. The 15° and 30° options allow for finer tapered control throughout the valve rotation, and the 60° & 90° offer a larger Cv in addition to controlled flow.

The PTFE seat is standard in the V7 valves, while the 50/50 STFE seat is standard with V8, V9, and FVD9 V-port valves. The 50% 316 SST powder and 50% PTFE offers both strength and superior sealing properties.

While they are available as manual ball valves, we specialize in automating them to suit your particular control requirements.

Features

Sizes 1/2”-4”, 3-Piece (V7, V8)

Sizes 1/2”-6”, 150# Flanged (V9)

Sizes 1/2”-6”, 300# Flanged Firesafe (FVD9)

316SST or WCB

TA-Luft Certifed Low Emissions (V8, V9)

15°, 30°, 60° & 90° “V” Notch Standard (Others on request)

See product catalog for detailed product information.
