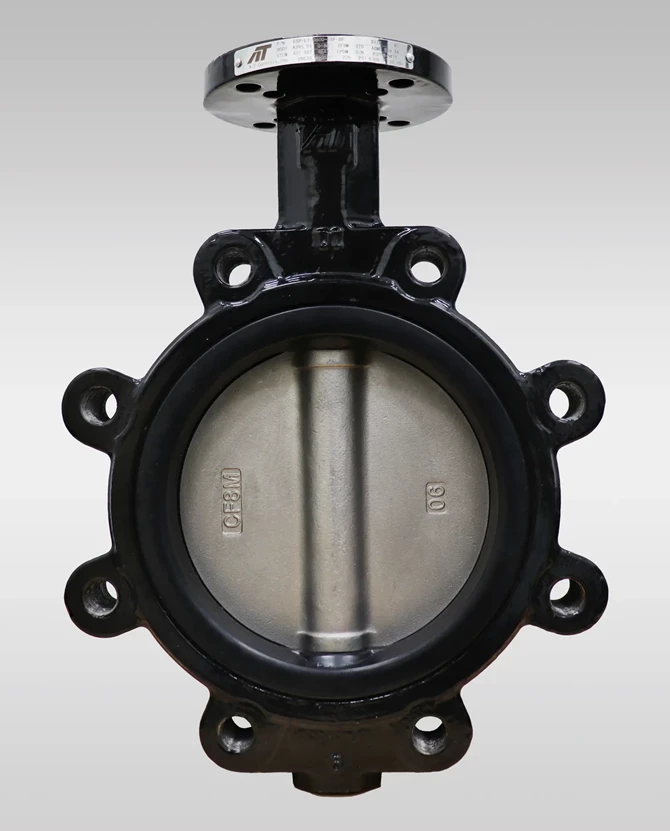

ES Series: A-T Resilient Seated Butterfly Valves

ES Series: A-T Resilient Seated Butterfly Valves

  • Item #: ESATRSBV

View Resources

Product Description

A-T Controls Butterfly Valves cover a wide range of industries from General Purpose to Chemical, Food and Beverage, Pulp and Paper, Waste Water applications and more. The product line features many choices of seat, disc and stem materials which enable you to address a wide variety of applications and media. A-T Controls Butterfly Valves are designed to comply with MSS-SP-67 and API-609 and are tested to comply with API-598 standards. They are compatible with ANSI 125/150 flanges.

Square stem, Sizes up to 24

Body material is Ductile Iron (ESP) or Stainless Steel (ES)

Body Wafer or Lug style, ductile iron or stainless steel

Disc Nickle Plated Ductile Iron, CF8M Stainless Steel (polished option), Aluminum Bronze, Nylon Coated Ductile Iron, Undercut CF8M SST (polished option), Undercut Aluminum Bronze, and others may be available on request

Seat EPDM, Buna-N, Food grade EPDM, Viton®, PTFE

Stem 431 SST standard (431 SST, 17-4PH and others available)

Stem Bushing FRP (Brass available)
