Controls & Controllers
22 items

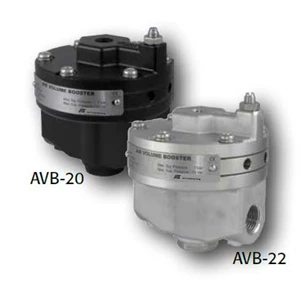

Air Volume Boosters
AVB
The AVB Series is an air volume booster that is mounted between the positioner and actuator. It provides the actuator with a high air flow output, whose pressure corresponds exactly to the signal pressure. Delivers high air volume to actuator Provides ample air volume flow between positioner and actuator to eliminate over and/or under travel of the control signal Provides a tight shut off to reduce a costly air consumption Exhaust filters are installed for prevention of contamination by foreign substances from outside
- USD

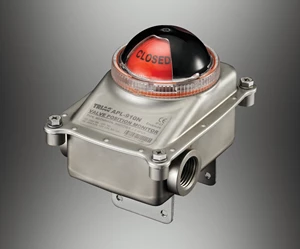

APL Series: CSA Approved Limit Switches
APLCSAALS
The Triac® APL Series Limit Switches feature high quality, easy to use, multiple option switch boxes for rotary actuators. Their die-cast aluminum housings are powder coated for corrosion resistance and feature open/close visual indicators, quick-set cams and easy access terminal strips. These economical switch boxes offer numerous switch, sensor and transmitter options to handle most applications found in today’s process and industrial markets. Features: Die-cast aluminum powder coated enclosure | Captive cover bolts | NAMUR mount brackets | Quick-set spring loaded cam | Dome visual indicator (3-way available) | Up to four switches on APL 3, 4 and 5 and various mechanical, proximity and reed type sensors, feedback potentiometers and 4-20mA transmitter options. APL 2 Series “Compact” Switch CSA Approved, Type 4X Solid, compact, low-profile design Dual 1/2 NPT conduit entries, 8 pts. on terminal strip Ambient temperature range -20°C to 80°C (2) SPDT mechanical micro switches APL-218 (2) SPDT gold plated micro switches make it useful as a simple device for intrinsically safe applications. APL 3 Series Limit Switch CSA Approved, Type 4X Rugged and flexible design Dual 1/2” NPT conduit entries, 8 pts. on terminal strip Ambient temperature range -20°C to 80°C APL 4 Series Limit Switch CSA Approved, Class I, Division 1, Groups C and D T6 Class I, Zone 1, AEx d IIB, T6, Ex d IIB, T6, Type 4X/6, IP 66/67/68 ATEX/IECEx rating available: Ex d IIB T6 Gb (APL-410N-ATEX) Dual 3/4” NPT conduit entries, 8 pts. on terminal strip Ambient temperature range -20°C to 60°C APL 5 Series Limit Switch CSA Approved: Class I, Div 1, Grps B, C and D T6; Class II, Div 1, Grps E, F, G; Class III - Class I, Zone 1, AEx d IIC, T6; Class II, Zone 21, AEx tb IIIC T65°C Db; Ex d IIC, T6; Ex tb T65°C Db; Type 4X/6, IP66/67 ATEX/IECEx rating available: Ex d IIC T6 Gb, Ex tb IIIC T85°C Db, IP67 (APL-510N-ATEX) Available with Stainless Steel enclosure Dual 3/4” NPT conduit entries, 8 pts. on terminal strip Screw-on enclosure lid with spring loaded captive cover bolts - unique design to hold bolts inside cover Ambient temperature range -20°C to 60°C (-4°F to 140°F) Low temp option down to -50°C (-58°F) with C1, C3 switches only APL 9 Series Stainless Steel Limit Switch Type 4X, IP 67 (CSA Pending) 304 Stainless Steel Enclosure Stainless Steel shaft and captive cover bolts NAMUR stainless steel mounting bracket included Ambient temperature range -20°C to 80°C
- USD

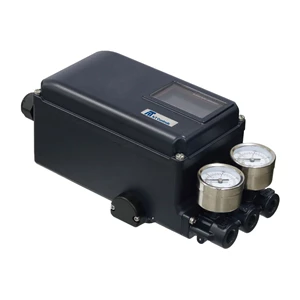

ASD Fail Safe Digital Smart Valve Positioners
ASD5000
Digital smart positioner with HART protocol (Ver.7) Easy and quick auto-calibration Detects reverse acting (RA) or direct acting (DA) automatically Non-contact magnetic position sensor Alarm codes according to NE 107 Standard NAMUR mounting bracket (VDI/VDE 3845, IEC 60534-6-2) with adjustable height Usable with single or double acting actuators Auto/Manual bypass Programmable characteristic curve with 17 points Includes logic to eliminate overshooting and hunting, improving control Low air consumption (0.1 SCFM) High flow pilot valve (10.5 SCFM) Direct to atmosphere exhaust improves reliability. Wide operating temperature range (-22°F to 176°F ) IP66 enclosure and standard model with Intrinsically safe ratings (IECEx/ATEX Ex ia IIC T6/T5 Gb, Ex ia IIIC T85°C/T100°C Db) Options Low Temperature (-40°F to 176°F) Linkage-less actuator connection 316 Stainless Steel body Advanced diagnostics
- USD

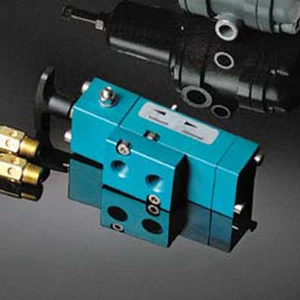

Block and Bleed Valve
BBV
The Block and Bleed Valve (BBV) is a NAMUR mounted module for the actuator. The BBV is used as a bypass valve for use with a manual override to shut off supply air and vent actuator ports. The BBV may also be used as a lockout valve which when properly implemented, will satisfy OSHA Standard 1910.147, “The Control of Hazardous Energy.”
- USD

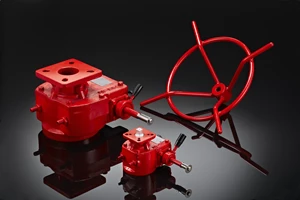

Declutchable Gear Override
DeclutchableGO
The Declutchable Gear Override “Sandwich Mounts” between a pneumatic quarter-turn actuator and a ball, butterfly, plug or damper valve. This rugged device allows for manual operation during installation, system testing and in the event of an air supply failure. The DGO Series mounts directly to many of the most popular rack and pinion style actuators on the market, and does not require a bracket between the pneumatic actuator and declutchable override. The units come complete with a three-stage coupler that connects to the pneumatic actuator through the gear override and to the valve (or coupler). Output torques cover a broad range of pneumatic actuator and quarter-turn valve sizes that require the convenience of a manual override. FEATURES: There are 2 Industry Standard Mounting Patterns: 3RDGO – Matches the ISO 5211 dimensions 3KDGO – Matches the Keystone 3.25 and 5.00 bolt patterns 3 Stage Coupler (Actuator, Gear, Valve) Rugged Declutch Lever and Engagement Handle BBV – Block and Bleed Valve to exhaust air supply from actuator
- USD

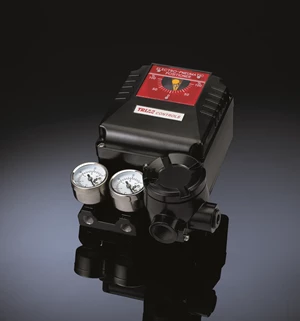

EPR-1000 Electro-Pneumatic Positioner
EPR-1000EPP
TRIAC® EPR 1000 pneumatic positioners (4-20mA, linear pneumatic positioner, and rotary type pneumatic positioner) are advanced control devices which provide unparalleled stability in difficult environments. They are made with a vibration-resistant design and a corrosion-resistant aluminum diecast body. A solid workhorse you can depend on for consistent, reliable control. Easy maintenance Sensitive response for high performance Simple structure for feedback connection Precise calibration with simple SPAN and ZERO adjustments Simple conversion to Direct Acting or Reverse Acting Split range control available by simple adjustments without changing parts Stainless steel gauges standard A restricted pilot valve orifice kit for small actuators included Optional built-in limit switches or 4-20 mA position transmitter for feedback Optional directly-mountable positioner
- USD

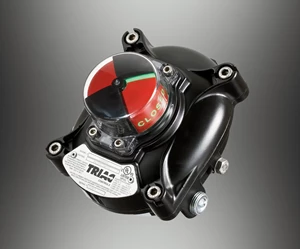

EX, EC, ES, EY, EW Series: UL Listed Limit Switches
EXECESEYEWLS
The TRIAC® EX, EC/ES, EY, and EW Series hazardous location Limit Switches provide compact design and low cost for both visual and remote electrical indication of rotary valve/actuator position. Their heavy duty design and wide variety of options make them ideal for multi-purpose limit switch applications. Features: twin shaft body design | easy-set cams | multiple switch options | valve position indicator | 1/2 or 3/4 NPT conduit entries | standard NAMUR mounting brackets | various models and options EX Series: Aluminum Housing NEMA 4, 4X, 7 and 9 applications Up to three conduit entries EC/ES Series Available in Aluminum (EC) or 316SST (ES) Housing UL Listed type 4, 4X, Weather-Proof Dual threaded conduit entries with extra terminals EY Series Low Copper Aluminum Housing UL Listed type 4, 4X, 7 and 9, Explosion-Proof and Weather-Proof Up to four conduit entries with extra terminal options EW Series L316 Stainless Steel Housing UL Listed type 4, 4X, 7 and 9, Explosion-Proof and Weather-Proof Up to four conduit entries with extra terminal options
- USD

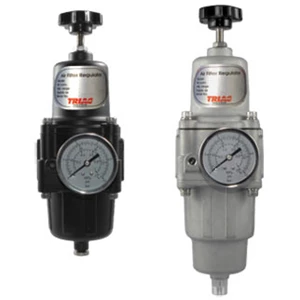

Filter Regulator
FilterR
Stable setting pressure: Constant output pressure under variable flow rates or supply pressures. Corrosion-resistant construction: Aluminum die-casting are finished with chromate. Filter: It is designed to equip with high capacity 5 Micron Filter housed. Self Relief function: Self-Relief function is operated when the output pressure is higher than setting pressure. High flow capacity: It is designed to supply sufficient flow. Disc: It is strong in oil resistance. Tight shut off: A soft, rubberized pin provides a positive shut off and compensates for dirt and other foreign matter.
- USD

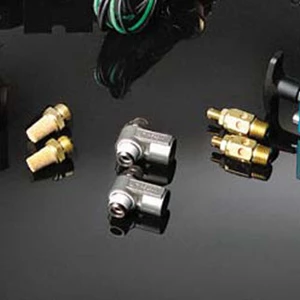

Flow Control and Speed Control
FCSC
Minimizes installation time and cost. Reduces the mounting height and enables compact machinery design. Effective area is larger than the former mode.
- USD
