Ball Valves
46 items
DR Series: 3-Way Temperature Control
DR3WTC
For tank temperature control in the wine industry, A-T Controls offers custom solutions. On the SUPPLY side (3 position control, off/cooling/heating) and RETURN side (2 position, diverting from cooling and heating), our DR Series ball valves may be automated with Triac WE-500 electric actuators. Sizes 1/2”- 2” Regular Port Design (1/2” Full Port) 2000/1500 psi WOG (by size) Available in 316SST or Carbon Steel Threaded, Socket Weld, or Butt Weld Ends Superior Live Loaded Packing System For our White Paper on Temperature Control in Wine Making, go to the Resources tab > Applications > Temperature Control.
- USD
F23 & F26 Series Firesafe Seal Welded 2-pc Ball Valve
F23FBV
This high-pressure series is designed with a high-quality investment cast body. The seal welded ends offer high integrity pressure rating. Both Series F23 and F26 valves are NACE MR0175 and API-607 Firesafe tested for gas and oilfield service Sizes ¼” to 2” (see spec sheet for port sizes) Firesafe API 607 -5th Edition NACE MR0175 PEEK seats are offered as standard Series F23 is rated for 3600 psi Series F26 is rated for 6000 psi
- USD
F83 & F8R Series 3-pc Full & Regular Port Firesafe Ball Valves
F83FRMBV
Triac® F83 and F8R Series 3-Piece Firesafe Ball Valves are the finest quality 3-piece valves on the market. The high-quality investment castings feature a fully machined bore. The superior live-loaded packing system is accomplished with Belleville washers, “V” ring packing and a unique primary pyramidal stem seal. This advanced sealing system provides for protection against stem leaks experienced by ordinary ball valves. F83: Full Port F8R: Reduced Port API 607 - Certified Firesafe
- USD
F88 Series Firesafe 3-pc High Performance Ball Valve
F88HPBV
The Triac® F88 Series Firesafe 3-Piece Design have successfully passed the API-607 test. They are available with 316SS or WCB body. These high-quality investment castings feature a fully machined bore. The superior live-loaded packing system is accomplished with Belleville washers, “V” ring packing and a unique pyramidal stem seal. This advanced sealing system provides protection against stem leaks experienced by ordinary ball valves. Firesafe Sizes ¼” – 4” Full Port Conforms to ASME B16.34 (2020) Class up to 600, 1000 to 2000 psi (BPVC) by size CF8M or WCB Direct Mounting Pad Threaded, Socket Weld or Butt Weld Ends RTFE seats are Standard, 50/50 Seats are Available for High Temperature and Difficult Applications Blowout Proof Stem w/ Dual Anti-Static Devices Monel Ball and Stem Available Also available with a Pneumatic Spring Return Actuator, Double Acting Actuator or Electric Actuator. View this package in 2D or 3D on our Automated Drawing System.
- USD

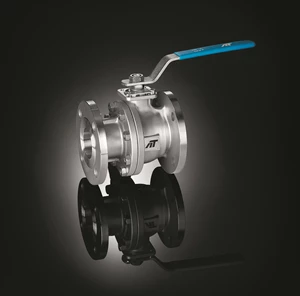

F90 Series Firesafe Split Body Flanged Ball Valve
F90FSBFBV
Triac® F90 Series Firesafe Split Body Flanged Ball Valves have successfully passed the API-607 6th edition test. These high-quality investment cast valves feature a fully machined bore. The superior live-loaded packing system is accomplished with Bellville washers, V ring packing and a unique primary pyramidal stem seal. This advanced sealing system provides for protection against stem leaks experienced by ordinary ball valves. API 607 Certified Firesafe Sizes 1/2 - 4 Available in 316SST or WCB ASME Class 150 Full port design Superior live-loaded packing system ISO 5211 actuator mounting pad Blowout Proof Stem w/ Dual Anti-static devices Pyramidal Stem Seal Design Monel Ball and Stem Available RTFE Seats standard (50/50 STFE seats available for higher temps)
- USD

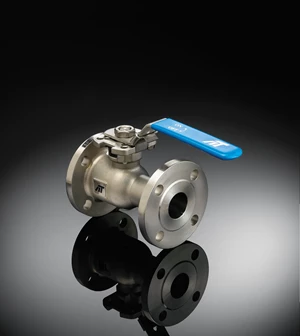

F91 Series Firesafe Unibody
F91FU
Triac® Series F91 unibody flanged ball valves feature a high-quality investment cast body and end. They are available in 1/2” through 6” and are regular port. Superior leak protection is accomplished by using our patented “pyramidal” stem seal system shown in the graphic below. This advanced system protects against wear and leakage experienced by ordinary ball valves. Unibody Direct Mount Flanged Ball Valve ASME Class 150 Sizes 1/2” to 6” Regular Port 316 Stainless Steel or WCB ISO 5211 actuator mounting pad RTFE seats standard NACE MR-0175 Pyramidal Stem Seal Design Superior live-loaded packing system Blowout Proof Stem with dual anti-static devices Firesafe: API 607 (see catalog for specifics) View this package in 2D or 3D on our Automated Drawing System.
- USD
F9R-F1 Series Firesafe Unibody
F9RF1FU
Triac® Series F9R unibody flanged ball valves feature a high quality investment cast body and end. They are available in 1/2” through 8” regular port. Double seal design (1-1/2”–8”) provides superior leak protection. Packing is adjustable without removal of actuator. TFM™-1600 seats are standard, but various options are available for seat materials. The 50/50 TFM™/SS (STFM) seat option is excellent for services that call for higher temperatures and more difficult applications including steam. Unibody Direct Mount Flanged Ball Valve ASME Class 150 Sizes 1/2” to 8” Regular Port 316 Stainless Steel or WCB ISO 5211 actuator mounting pad TFM™-1600 seats standard NACE MR-0175/MR-0103 Superior live-loaded packing system Blowout Proof Stem with anti-static devices Firesafe: API 607 7th Edition (see catalog for specifics) Fully conforms to ASME B16.34
- USD
F9R-F3 Series Firesafe Unibody
F9RF3FU
Triac® Series F9R-F3 unibody flanged ball valves feature a high quality investment cast body and end. They are available in 1/2” through 8” regular port. Double seal design (1-1/2”–8”) provides superior leak protection. Packing is adjustable without removal of actuator. TFM™-1600 seats are standard, but various options are available for seat materials. The 50/50 TFM™/SS (STFM) seat option is excellent for services that call for higher temperatures and more difficult applications including steam. Unibody Direct Mount Flanged Ball Valve ASME Class 300 Sizes 1/2” to 8” Regular Port 316 Stainless Steel or WCB ISO 5211 actuator mounting pad TFM™-1600 seats standard NACE MR-0175/MR-0103 Superior live-loaded packing system Blowout Proof Stem with anti-static devices Firesafe: API 607 7th Edition (see catalog for specifics) Fully conforms to ASME B16.34
- USD
FD9 Series Firesafe ASME 150
FD9F150
Triac® FD9 Series Flanged Ball Valves feature a direct mount automation pad. The high-quality investment castings feature a fully machined bore. Superior live-loaded packing system is accomplished with Belleville washers, V ring packing and a unique pyramidal stem seal design. This advanced sealing system provides for protection against stem leaks experienced by ordinary ball valves. Firesafe Direct Mount Split body Flanged Ball Valve ASME Class 150 / 300 / 600 Full Port Design ISO 5211 actuator mounting pad NACE MR-0175 Pyramidal Stem Seal Design Superior live-loaded packing system Blowout Proof Stem with dual anti-static devices Series FD9-F1: ASME Class 150 Available in 316SST and WCB RTFE seats standard; 50/50 STFE option for higher temps and difficult applications Monel Ball and Stem available Firesafe: API 607 (see catalog for specific edition by size and material)
- USD
